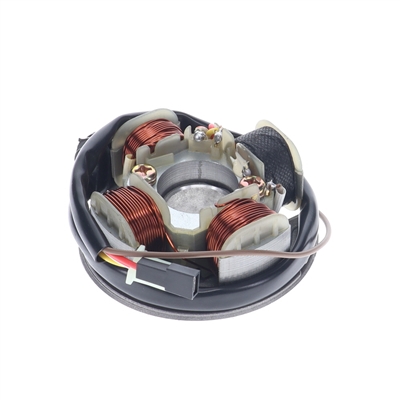

tomos A35 A55 CDI stator plate - 4 wire
tomos A35 A55 CDI stator plate - 4 wire

  $69.99

 :*sorry none today*

Free Shipping
qty:



replacement CDI stator plate for early tomos A35 revival (2001-2003) with electric start. adaptable to A35 and A55 2 wire iskra ignitions with some wiring modz.

note: this has 4 wires as opposed to the traditional 2 wire setup on OEM iskra stators. you will need to use your noggin to adapt the wiring to a 2 wire tomos system!! looks like the main difference is that it has an external ground (brown) and a red/white wire that comes off the end of the lighting circuit meaning it's set up for use with a full wave rectifier. score!!

yellow
brown
red
white/red

90mm plate OD

should be a suitable replacement for the stator from tomos OEM # 230842
