puch moped E50 clutch bushing goodie bag
puch moped E50 clutch bushing goodie bag

  $19.99

 :HERE NOW!!

Free Shipping
qty:



an assortment of helpful clutch pieces for a puch e50 moped motor! get your clutch setup back in action with these essential parts.

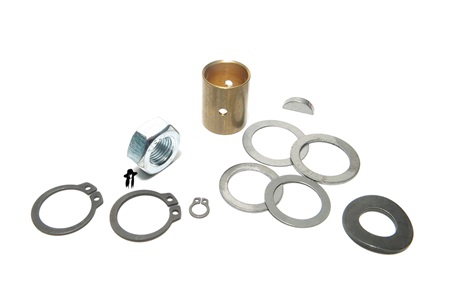

includes (2) large and (2) small shims, woodruffy key, clutch nut, wave washer, (2) 17mm circlips, starter plate circlip and clutch bell bushing!

length - 22mm
ID - 15mm
OD - 17mm

large and small shim thicknesses
-1mm
-0.3mm

remember the clutch bell bushings are often TIGHT, be prepared to ream or sand them down a lil before use please!

taco rating taco rating 2 of 5 2 of 5 Total Reviews: 2 give your taco rating here

  0 taco eaters like this review

1 of 5 It Has Most of the Parts - Bushing is Loose May 14, 2024
taco eater : Kelikaku from HERMOSA BEACH, CA United States
1) My old bushing had less play than the new brass bushing (really loose). I just checked by laterally moving it against the shaft and comparing it with the very tight original bushing. It's loose. So I have to re-use the original bushing.
2) The clutch requires two circlips a 15mm and a 17mm. The package has two 17mm's and it's in the description. Why send an extra circlip we don't need and leave out another circlip we do need? Don't understand.
3) An axial bearing isn't included. Sold separately on this site.
4) No instructions on how to shim the clutch. They're pretty good about answering emails though.
If the bushing had at least been the right size, especially when the description says that the bushing's supposed to be really tight. Not having the right sized circlip, seemingly it's intentional, in the description. Sizes are there in the Puch parts manual. The other review from seven years ago noted the same issue of a wrong sized circlip. So letting it go for seven years?

Was this review helpful to you?

  4 taco eaters like this review

3 of 5 Something important missing July 25, 2017
taco eater : jordan melville from savannah, GA United States
It would be better if this had a small end circlip that keeps the bell in rather than another large end circlip
